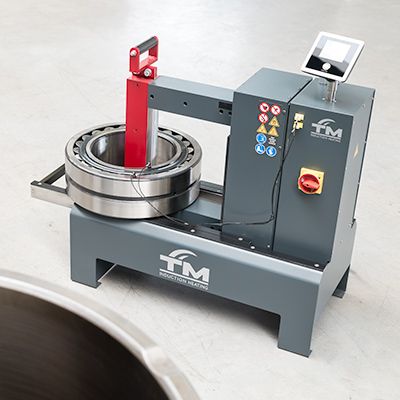

SURETHERM PRO1X INDUCTION BEARING HEATER
Downloads
Description
SURETHERM, the New Generation Low Frequency, Energy Efficient Induction Heaters manufactured by TM Induction Heating in The Netherlands.
The SURETHERM PRO 1X is a flexible Induction Heater designed for use in large maintenance workshops and production areas, it can heat parts with a maximum weight of 400 kg, minimum bore of 30mm and a diameter of up to 1000 mm. The SURETHERM PRO 1X combines intuitive touchscreen interface, two sensor heating and when mounted on the optional Trolley becomes a mobile heavy duty Induction Heater. The SURETHERM PRO 1X, with 4 heating modes (Time, Ramp, 1 Sensor and 2 Sensor), delivers controlled tension free mounting for large Bearings, Gears, Couplings or other components.
Specifications:
Power - 12.8KVA
Voltage - 400V
Current - 32A
The SURETHERM PRO 1X comes complete with:
YOKES – 80X80mm
2 TEMPERATURE SENSORS – 1000mm
HEAT RESISTANT GLOVES (250°C)
GREASE
SURETHERM PRO 1X Options:
Yokes – 20x20mm, 30x26mm, 40x38mm, 50x48mm, 60x60mm, 70x70mm
Extension Yokes – 80x80x150mm, 80x80x200
Easy Print Graph Software
Remote Control
Long Length Temperature Sensors – 1500mm, 3000mm, 5000mm
Clamp Temperature Sensor
Trolley
400°C High Temperature Model
400°C Temperature Sensor
MAINTENANCE MADE - EASIER + FASTER+SAFER
